Our 21 - 37 lb class of Clay Diggers provide the perfect range of lightweight to heavy duty tools in the industry with 1850 - 2120 bpm. Ideal for digging medium to lightly packed soil, trenches to lay pipes, or for tunneling under existing structures. Our diggers also contain universal parts, making them rigid and versatile for various forms of work.

21-37 lbs

For light to heavy demolition work

LBS Icon White

1,850-2,120 bpm

Blows per minute

BPM Icon White

Airgo-Line® Options

Ergonomic options available for select models

Clay Digger Icon White

M118 CLAY DIGGER

M118-Web-Image-APT



The APT Model 118 Clay digger is used for digging clay, shale, hard pan, and frozen ground. The Model 118 is an ideal tool for clearing out dirt under existing foundations and for tunneling under existing foundations and for tunneling under existing structures. This medium weight tool can be used for horizontal work and for vertical work.

TECHNICAL INFORMATION

Model - Part #   5201 5202
Chuck Size in 7/8 x 3 - 1/4 1 x 4 - 1/4
Bore Diameter in 1 - 3/4
Stroke in 3 - 3/8
Blows per minute bpm 1,850
CFM @ 90 psi cfm 34-36
Weight lbs 31
Length in 22 - 1/2
Air Inlet NPT in 3/8 Male NPT

Downloads

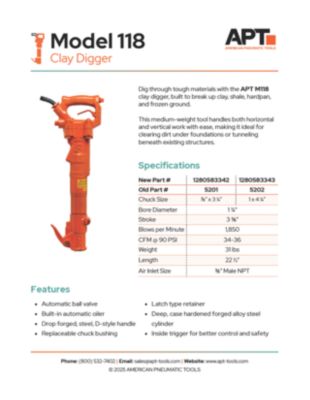

Untitled design - m118 spec thumbnail

Specification Sheet

PDF

Filename
M118+Spec+Sheet.pdf
Size
52 KB
Format
pdf
Download
Untitled design - m119 parts thumbnail

Parts List

PDF

Filename
M119+Spec+Sheet.pdf
Size
47 KB
Format
pdf
Download
Untitled design - clay diggers accessories thumbnail

Accessories

PDF

Filename
Clay-Trench-Diggers-accessories.pdf
Size
207 KB
Format
pdf
Download

M119 CLAY DIGGER

M119-Web-Image-APT



The APT M119 clay digger is used for digging clay, shale, hard pan and frozen ground. The Model 119 is the perfect tool for digging trenches to lay pipes, phone lines and for foundation work.

TECHNICAL INFORMATION

Model - Part #   5203 5204
Chuck Size in 7/8 x 3 - 1/4 1 x 4 - 1/4
Bore Diameter in 1 - 3/4
Stroke in 3 - 3/8
Blows per minute bpm 1,850
CFM @ 90 psi cfm 34-38
Weight lbs 37
Length in 31
Air Inlet NPT in 1/2 Female NPT

Downloads

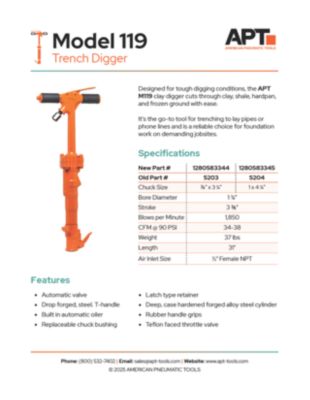

Untitled design - m119 spec thumbnail

Specification Sheet

PDF

Filename
M119+Spec+Sheet.pdf
Size
47 KB
Format
pdf
Download
Untitled design - m119 parts thumbnail

Parts List

PDF

Filename
M119+parts.pdf
Size
64 KB
Format
pdf
Download
Untitled design - clay diggers accessories thumbnail

Accessories

PDF

Filename
Clay-Trench-Diggers-accessories.pdf
Size
207 KB
Format
pdf
Download

M125 CLAY DIGGER

M118-Web-Image-APT



The APT M125 Clay Digger can be used for digging clay, shale, hard pan and frozen ground. The Model 125 is a lighter weight tool ideal for digging medium to lightly packed soil, for light demolition work as well as for tunneling around existing foundations. With its latch type retainer, lighter wight and short length, this tool is one of the best and easiest to handle Clay diggers made today.

TECHNICAL INFORMATION



Model - Part #   5211
Chuck Size in 7/8 x 3 - 1/4
Bore Diameter in 1 - 11/16
Stroke in 2 - 3/4
Blows per minute bpm 2,120
CFM @ 90 psi cfm 38-42
Weight lbs 21
Length in 18 - 3/8
Air Inlet NPT in 1/2 Female NPT

Downloads

Untitled design - m125 spec thumbnail

Specification Sheet

PDF

Filename
M125+Spec+Sheet.pdf
Size
55 KB
Format
pdf
Download
Untitled design - m125 parts thumbnail

Parts List

PDF

Filename
M125+parts.pdf
Size
30 KB
Format
pdf
Download
Untitled design - clay diggers accessories thumbnail

Accessories

PDF

Filename
Clay-Trench-Diggers-accessories.pdf
Size
207 KB
Format
pdf
Download

CLAY & TRENCH DIGGERS

Standard Features

  • ‣  Drop forged, T or D steel handle
  • ‣  Deep, case hardened forged alloy steel cylinder
  • ‣  Replaceable chuck bushing
  • ‣ Latch type retainer
alternative text for accessiliblty

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification chart above.

Barometer Icon Orange

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Size Icon Orange

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Hose Icon Orange
