PRODUCTS

Paving Breakers

Break through any job with confidence. Our paving breakers tackle light, medium, and heavy demolition—even in tight spaces. With a powerful 1,350 to 1,850 BPM range, they’re built to bust through concrete floors and handle a wide range of demolition tasks with ease.

30-90 lb classes

For light to heavy demolition work

LBS Icon White

1,350-1,850 bpm

Blows per minute

BPM Icon White

Airgo-Line® Options

Ergonomic options available for select models

Airgo Icon White

M117 PAVING BREAKER

M117 Paving Breaker



Take on concrete floors, confined spaces, and light to medium demolition work with the APT M117. This 30-pound paving breaker is built for power and control.

Its lightweight design makes it easy to handle without sacrificing the force you need to get the job done.

Specifications
New Part # 1280582251 1280583301
Old Part # 5199 5200
Chuck Size ⅞″ Hex x 3 ¼″ 1″ Hex x 4 ¼″
Bore Diameter 1 ¾″
Stroke 3 ⅜″
Blows per Minute 1,850
CFM @ 90 PSI 34–38
Weight 33 lbs
Length 21 ¾″
Air Inlet Size ⅜″ Male NPT

Downloads

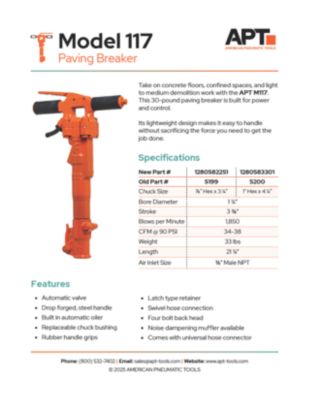

M117 APT Spec Sheet

M117 APT Spec Sheet

PDF

Filename
APT M117 Paving Breaker Specification Sheet.pdf
Size
470 KB
Format
pdf
Download

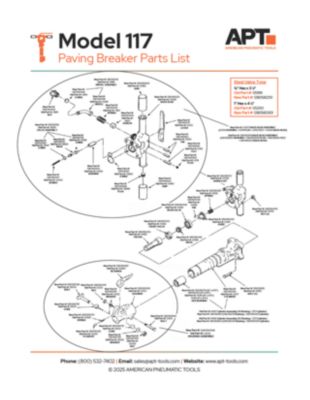

Untitled design - m117-parts-thumbnail

Parts List

PDF

Filename
M117-Parts.pdf
Size
392 KB
Format
pdf
Download

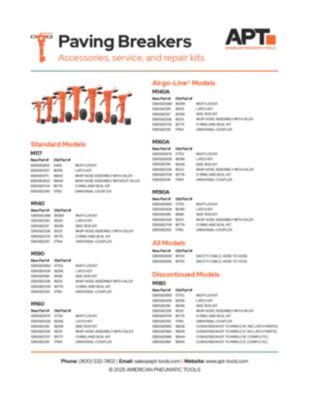

Untitled design - pb-acc-thumbnail

Accessories/Service Kits

PDF

Filename
Paving-Breakers-accessories.pdf
Size
521 KB
Format
pdf
Download

M140/M140A PAVING BREAKER

M140-Web-Image-APT



Tackle tough jobs without the extra weight using the APT M140. This rugged 40-pound paving breaker is built for light to medium construction work and is ideal for plant maintenance.

Break through floors, pavement, and frozen ground with ease. Its reliable performance also makes it a top choice for bridge deck demolition.

AIRGO-LINE® ergonomic back head (interexchangeable with standard back head) option available. Features ergonomic handles that reduce vibration to the hands and arms, helping operators stay comfortable and focused (M140A).

Specifications M140 M140A
New Part # 1280582247 1280582248
Old Part # 17923 18041
Chuck Size 1" Hex x 4 ¼”
Bore Diameter 1 ⅞”
Stroke 4 ¼”
Blows per Minute 1,500
CFM @ 90 PSI 48
Weight 43 lbs
Length 21 ⅛” 24 ⅛”
Air Inlet Size ½” Male NPT
Airgo-Line Back Head Assembly

Airgo-Line® Backhead Assembly:

M140A Assy: #18034

Downloads

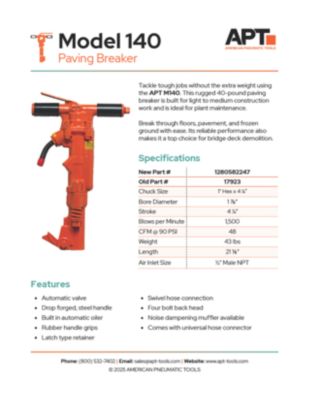

M140 APT Spec Sheet

M140 APT Spec Sheet

PDF

Filename
APT M140 Paving Breaker Specification Sheet.pdf
Size
341 KB
Format
pdf
Download

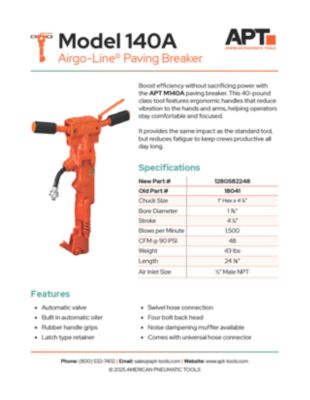

M140A APT Spec Sheet

M140A APT Spec Sheet

PDF

Filename
APT M140A Paving Breaker Specification Sheet.pdf
Size
267 KB
Format
pdf
Download
Untitled design - M140 Parts

Parts List

PDF

Filename
M140-Parts.pdf
Size
55 KB
Format
pdf
Download
Untitled design - pb-acc-thumbnail

Accessories/Service Kits

PDF

Filename
Paving-Breakers-accessories.pdf
Size
521 KB
Format
pdf
Download

M160/M160A PAVING BREAKER

M160-Web-Image-APT



Break through concrete and power through demolition with the APT M160. This 60-pound paving breaker is built for medium to heavy-duty work and delivers serious impact where it counts.

It’s one of the most reliable general-purpose breakers available and a top pick for asphalt cutting on tough job sites.

AIRGO-LINE® ergonomic back head (interexchangeable with standard back head) option available. Features ergonomic handles that reduce vibration to the hands and arms, helping operators stay comfortable and focused (M160A).

Specifications M160 M160 M160A M160A
New Part # 1280583302 1280583303 1280582245 1280582246
Old Part # 5235 5236 17746 17747
Chuck Size 1 ⅛” x 6" 1 ¼” x 6" 1 ⅛” x 6" 1 ¼” x 6"
Bore Diameter 2 ¼”
Stroke 4 ⅛”
Blows per Minute 1,680
CFM @ 90 PSI 60-65
Weight 68 lbs 70 lbs
Length 25 ¾” 28 ¼”
Air Inlet Size ½” Male NPT
Airgo-Line Back Head Assembly

Airgo-Line® Backhead Assembly:

M160A Assy: #17684

Downloads

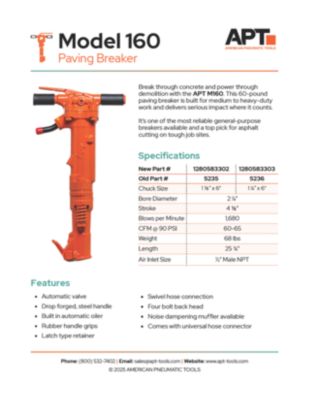

M160 APT Spec Sheet

M160 APT Spec Sheet

PDF

Filename
APT M160 Paving Breaker Specification Sheet.pdf
Size
342 KB
Format
pdf
Download
Untitled design - M160 Parts

Parts List (M160)

PDF

Filename
M160-Parts.pdf
Size
75 KB
Format
pdf
Download
Untitled design - pb-acc-thumbnail

Accessories

PDF

Filename
Paving-Breakers-accessories.pdf
Size
521 KB
Format
pdf
Download

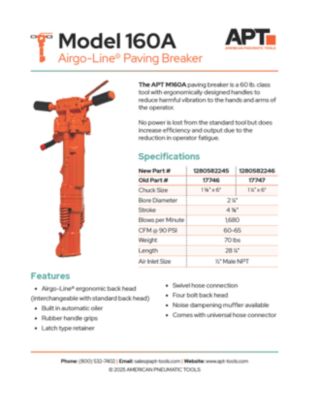

M160A APT Spec Sheet

M160A APT Spec Sheet

PDF

Filename
APT M160A Paving Breaker Specification Sheet.pdf
Size
332 KB
Format
pdf
Download
Untitled design - M160 Parts

Parts List (M160A)

PDF

Filename
m160a-parts.pdf
Size
46 KB
Format
pdf
Download

M190/M190A PAVING BREAKER

 M190-Web-Image-APT



The APT M190 is the most powerful paving breaker in the APT lineup, built for the toughest jobs on site.

Weighing at 90 pounds, it cuts through the hardest concrete with ease, making it a top choice for heavy demolition, road building, and foundation removal.

AIRGO-LINE® ergonomic back head (interexchangeable with standard back head) option available. Features ergonomic handles that reduce vibration to the hands and arms, helping operators stay comfortable and focused (M190A).

Specifications M190 M190 M190A M190A
New Part # 1280583304 1280583305 1280582249 1280582250
Old Part # 5239 5240 18618 18619
Chuck Size 1 ⅛” x 6" 1 ¼” x 6" 1 ⅛” x 6" 1 ¼” x 6"
Bore Diameter 2 ⅝”
Stroke 6 ⅛”
Blows per Minute 1,350
CFM @ 90 PSI 75-80
Weight 90 lbs
Length 29” 31"
Air Inlet Size ¾” Male NPT
Airgo-Line Back Head Assembly

Airgo-Line® Backhead Assembly:

M190A Assy: #17720

Downloads

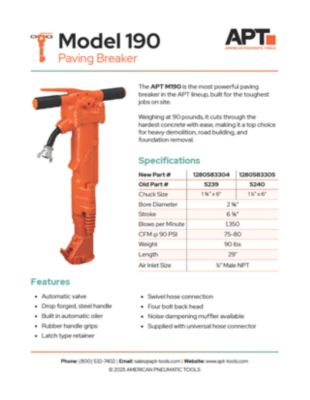

M190 APT Spec Sheet

M190 APT Spec Sheet

PDF

Filename
APT M190 Paving Breaker Specification Sheet.pdf
Size
285 KB
Format
pdf
Download
Untitled design - M190 Parts

Parts List (M190)

PDF

Filename
m190-parts.pdf
Size
74 KB
Format
pdf
Download
Untitled design - pb-acc-thumbnail

Accessories

PDF

Filename
Paving-Breakers-accessories.pdf
Size
521 KB
Format
pdf
Download

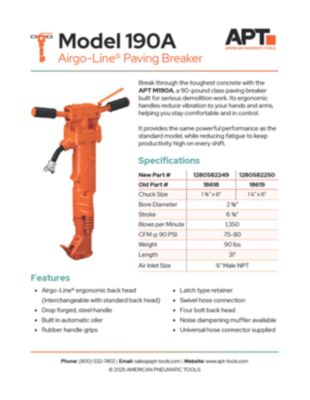

M190A APT Spec Sheet

M190A APT Spec Sheet

PDF

Filename
APT M190A Paving Breaker Specification Sheet.pdf
Size
263 KB
Format
pdf
Download
Untitled design - M190A Parts

Parts List (M190A)

PDF

Filename
m190a-parts.pdf
Size
41 KB
Format
pdf
Download

PAVING BREAKERS

Standard Features

  • Steel automatic valve
  • Drop-forged, steel handle
  • Built-in automatic oiler
  • Rubber handle grips
  • Latch-type retainer
  • Swivel hose connection
  • Noise-dampening mufflers available
  • Four-bolt backhead
  • Replaceable chuck bushing (except for model 140/140A)
paving-breaker-application-APT

Learn more about APT Paving Breakers:

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts above.

Barometer Icon Orange

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Size Icon Orange

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Hose Icon Orange
