M633CN RIVET BUSTER
The APT Model M633CN Airgo-Line® Rivet Buster measures only 20 - 5/8" in length, delivering more power to those tight spaces. Weighing just 28 lbs, it's perfect for limited access work or whenever a compact, lightweight, and powerful tool fits the bill. The tool features an innovative cylinder design that reduces overall weight without compromising the tool's strength or hitting force.
TECHNICAL INFORMATION
| APT Part # | M633CN | ||
|---|---|---|---|
| D-Handle (18848) | PG-Handle (18849) | ||
| Bore Diameter | in | 1-3/16 | 1-3/16 |
| Stroke | in | 6" | 6" |
| Blows per Minute | bpm | 1,100 | 1,100 |
| CFM @ 90 PSI | cfm | 42-46 | 42-46 |
| Weight | lbs | 28 | 28 |
| Length | in | 28 | 21 |
| Air Inlet NPT | in | 1/2" NPT Female | 1/2" NPT Female |

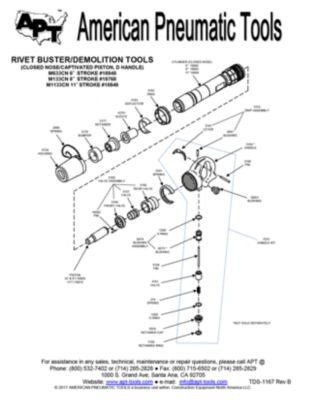

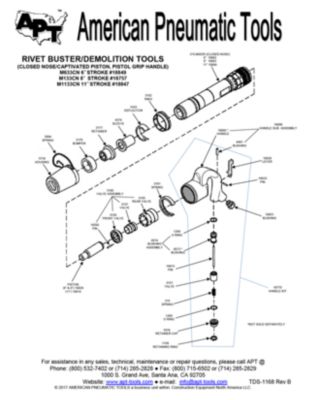

Downloads

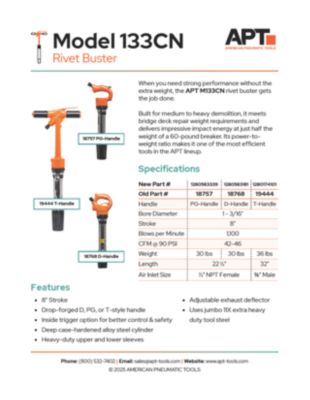

M133CN RIVET BUSTER
The APT Model M133CN Rivet Buster is widely known as a tough, powerful tool, with the ability to perform medium to heavy-duty demolition work. At half the weight of the 60 lb class paving breakers, the ratio of its high-impact energy versus its weight makes the Rivet Buster series the most efficient tool produced by APT. The Model 133 meets the weight requirements for bridge deck repair work.
TECHNICAL INFORMATION
| Model | Units | M133CN PG Handle |
M133CN D Handle |
M133CN T Handle |
|---|---|---|---|---|
| Bore Diameter | in | 1 - 3/16 | ||
| Stroke | in | 6" | ||
| Blows per Minute | bpm | 1,100 | ||
| CFM @ 90 PSI | cfm | 42-46 | ||
| Weight | lbs | 30 | 30 | 36 |
| Length | in | 22 - 1/2 | 22 - 1/2 | 32 |
| Air Inlet NPT | in | 1/2" NPT Female | 1/2" NPT Female | 3/8" Male |
Downloads

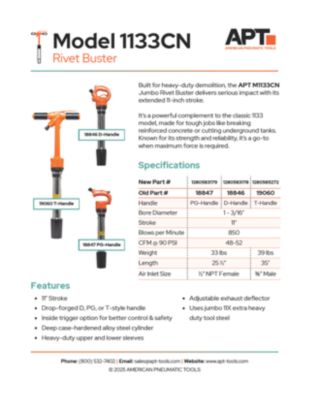

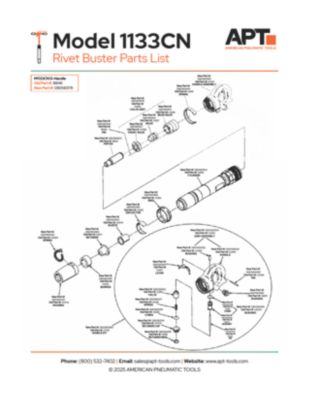

M1133CN RIVET BUSTER
The APT Model M1133CN Rivet Buster is a Jumbo Rivet Buster with an 11" stroke. This model complements the "classic" 133 Rivet Buster in those applications where heavy demolition force is required. The tool is widely known as being tough and powerful, with the ability to perform heavy demolition work. Rivet Busters are also popular for cutting up underground tanks.
TECHNICAL INFORMATION
| Model | Units | M1133CN PG Handle |
M1133CN D Handle |
M1133CN T Handle |
|---|---|---|---|---|
| Bore Diameter | in | 1 - 3/16 | ||
| Stroke | in | 11" | ||
| Blows per Minute | bpm | 850 | ||
| CFM @ 90 PSI | cfm | 48-52 | ||
| Weight | lbs | 33 | 33 | 39 |
| Length | in | 25 - 1/2 | 25 - 1/2 | 35 |
| Air Inlet NPT | in | 1/2" NPT Female | 1/2" NPT Female | 3/8" Male |
